SH Series – 5kA Squared GDT, Surface Mount, ≤0.7pF Capacitance

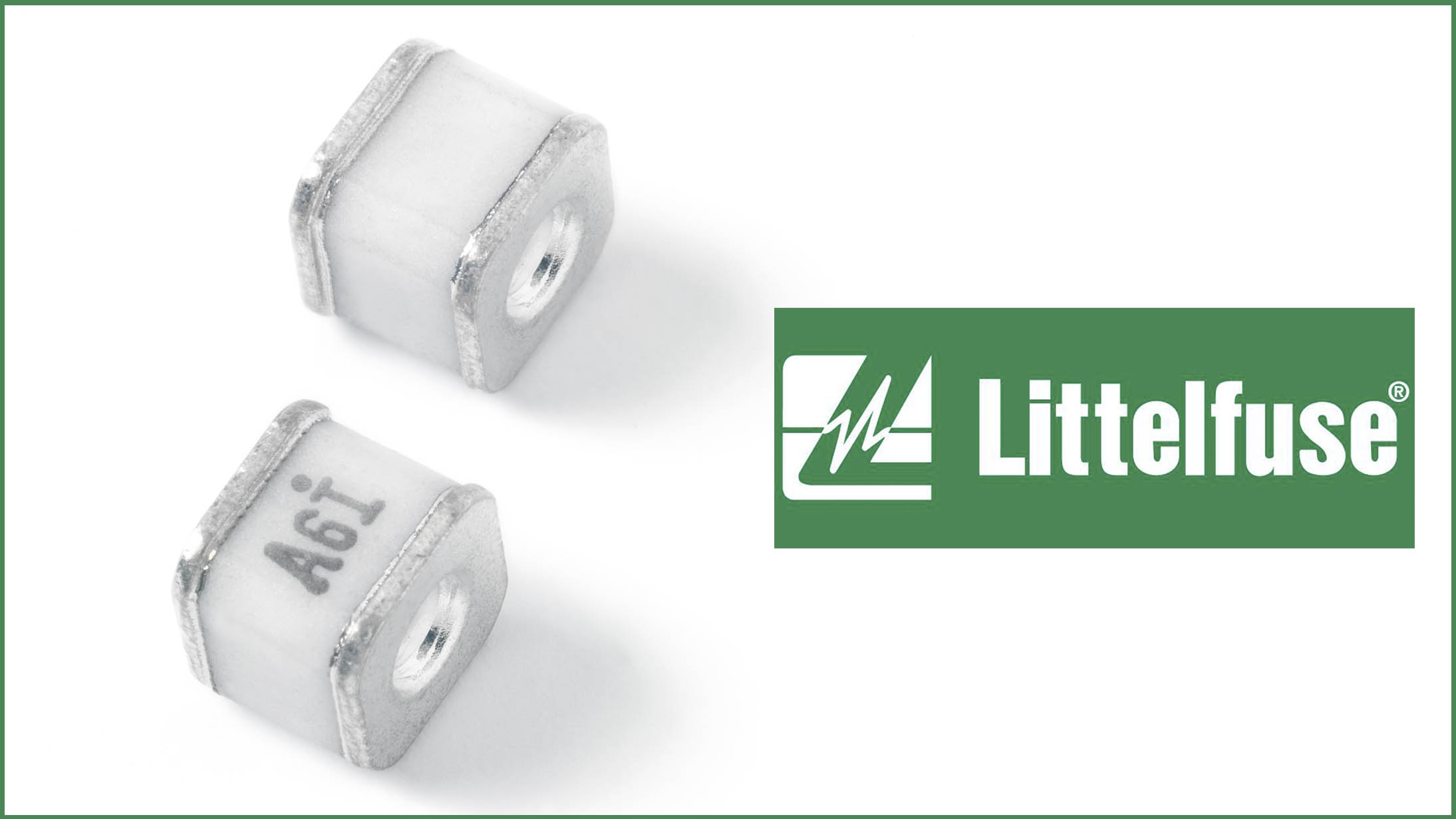

The SH Series Gas Discharge Tube (GDT) is designed to provide high levels of protection against fast-rising transients caused by lightning disturbances. It is offered in a squared surface mount package (5.0×5.0×4.2mm) with a 5kA surge capability and a ≤0.7pF off-state capacitance value.
Features:
- 5kA surge capability in minimal footprint (5.0×5.0×4.2mm)
- Ultra-low capacitance (< 0.7 pF) that does not vary as the signal voltage varies
- Surface mount form factor with squared body and terminals
Applications:
- G.Fast, xDSL, 10GbE, and 10/100/1000 BaseT Ethernet port protection
- Satellite, CATV equipment and set top boxes
- Coaxial cable
- Ethernet, RS-485, RS-232, etc. interfaces
- Broadband equipment
- General telecom equipment
- Industrial automation
- Power Inverter/Variable Frequency Drivers (VFDs)
