The STUSB4500L from STMicroele
USB-C is rapidly becoming established as a replacement for Micro-B or Mini-B plugs, for both power and data connections, as it offers the advantages of reversible orientation and greater robustness — up to 10,000 connect/disconnect cycles.
ST’s new USB-C controller IC is a stand-alone, plug-and-play interface product, targeting low-voltage applications such as Bluetooth speakers, computer accessories, Wi-Fi access points, point-of-sale equipment, LED lighting, and USB dongles. It can also be used for powering equipment such as single-board computers and hardware development kits. The controller IC runs without additional code and requires no external support from the microcontroller, which eases adoption of the USB-C connector standard by saving time-consuming design work.
The STUSB4500L is auto-powered via VBUS from the connected source and does not need to be supplied from a local battery or on-board power. Zero leakage current prevents draining the battery when not charging. Input over-voltage protection prevents low-voltage equipment being damaged if it is incorrectly connected, for example, to a 20V source from a USB PD AC adapter rather than the required 5V supply.
Further features include ‘dead-battery’ support to ensure correct identification by the source when the battery is fully discharged, true cold-socket implementation which keeps the VBUS switch open by default until safe 5V input power is supplied, source power-budget identification and error-recovery support to ensure correct re-starting when a fault is triggered.

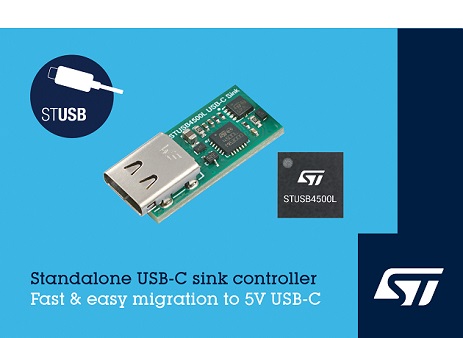

The STUSB4500L is in production now, in a choice of 4mm x 4mm QFN-24 package or 2.6mm x 2.6mm CSP-25 chip-scale package, priced from $0.70 and $0.75 respectively for orders of 1000 pieces. To ease prototyping, the reference design EVAL-SCS002V1, which has a small footprint of just 2.5 cm², can be ordered from ST or distributors.
For more information, visit www.st.com
