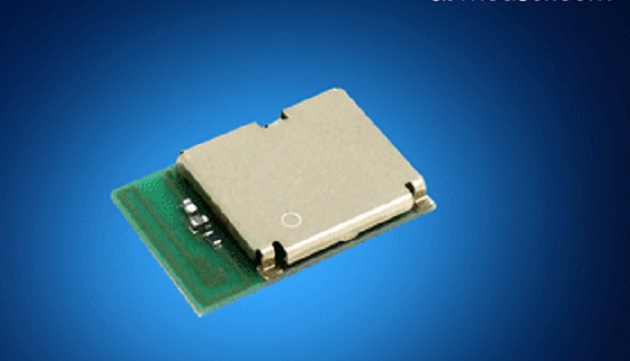

Mouser Electronics, Inc., the industry’s leading New Product Introduction (NPI) distributor with the widest selection of semiconductors and electronic components, is now shipping the EYSKBNZWB Bluetooth Low Energy module from TAIYO YUDEN. This ultra-compact module designed to help developers easily implement Bluetooth 5 technology into designs. A member of Taiyo Yuden’s Bluetooth Low Energy module family, the EYSKBNZWB boasts a small 10.0 × 15.4 × 2.0 mm footprint for space-constrained applications and pairs well with other sensors that require minimal space and power.
TAIYO YUDEN’s EYSKBNZWB module, available from Mouser Electronics, is powered by a Nordic Semiconductor nRF52840 system-on-chip (SoC), which contains a 32-bit Arm Cortex-M4F processor with 1 MByte of flash memory and 256 kBytes of RAM. The Nordic SoC also includes a 12-bit analog-to-digital converter and support for SPI, UART, and pulse width modulation (PWM) interfaces.
The EYSKBNZWB integrates a high-performance PCB antenna, 32 MHz system clock, and support for NFC-A Type-2 for touch-to-pair applications. The module offers typical output power of +8 dBm, and works in the low-power 2.4 GHz ISM band. The RoHS-compliant module is Bluetooth, FCC, IC, and Japan qualified and is ideal for low-power wireless applications, such as advanced wearables, connected health devices, virtual reality (VR) and augmented reality (AR), Internet of Things (IoT) sensors and controllers, and wireless payment systems.
