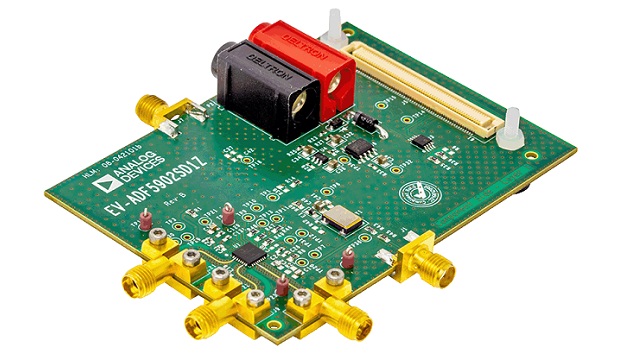

The ADF5902 from Analog Devices is a 24 GHz transmitter (Tx) monolithic microwave integrated circuit (MMIC) with an on-chip, 24 GHz voltage controlled oscillator (VCO). The VCO features a fractional-N frequency synthesizer with waveform generation capability with programmable grid array (PGA) and dual transmitter channels for radar systems. The on-chip, 24 GHz VCO generates the 24 GHz signal for the two transmitter channels and the local oscillator (LO) output. Each transmitter channel contains a power control circuit. There is also an on-chip temperature sensor.
Control of all the on-chip registers is through a simple, 4-wire serial peripheral interface (SPI). The ADF5902 comes in a compact, 32-lead, 5 mm × 5 mm LFCSP package.
Key Features:
- 24 GHz to 24.25 GHz VCO (industrial, (industrial, scientific, and medical (ISM) radio band)
- 2-channel 24 GHz power amplifier with 8 dBm output
- Single-ended outputs 2-channel muxed outputs with mute function
Applications:
- Automotive radars
- Industrial radars
- Microwave radar sensors
For more information, visit: www.analog.com
