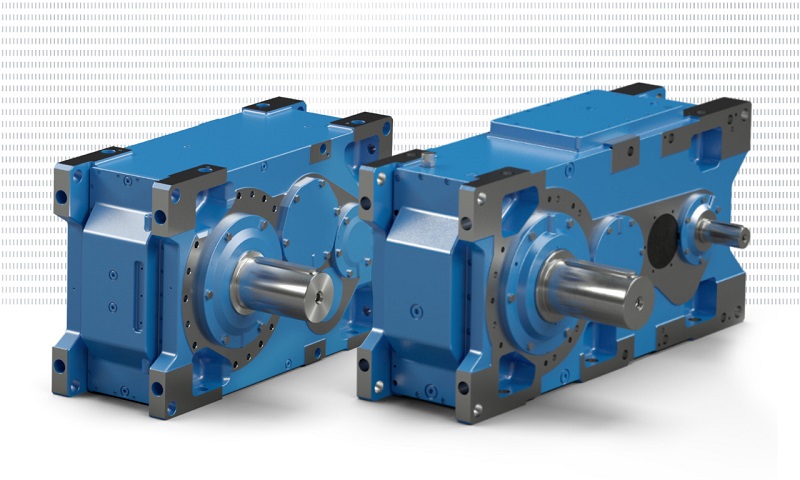

Lifting applications place special demands on the installation space for drives. With MAXXDRIVE XD, NORD DRIVESYSTEMS has now developed an industrial gear unit with the increased centre distance that is ideally suited to the U-shaped configuration of drive, motor and cable drum.
With the new MAXXDRIVE XD industrial gear units the drive specialist from Northern Germany is closing a gap in its portfolio. “We can now offer our customers the complete package of running gear and lifting gear drives for cranes from a single source“, said Jörg Niermann, Head of Marketing at NORD. As for all NORD gear units, the proven principle of robust one-piece UNICASE housing will be applied. During development, the MAXXDRIVE XD’s housing was specially designed for lifting applications and optimised for downward loads. The elongated arrangement of gear stages also enables a mechanical tailor-made dimensioning of the gear unit with sufficient centre distance – thereby avoiding an otherwise all too common over dimensioning.
Standardisation and reduction of variants
NORD currently offers the new MAXXDRIVE XD in five sizes with centre distances between 509 and 963 millimetres. Also in versions with three or four gear stages. Housing dimensions and centre distance are identical for the three- and four-axle versions. This enables customers to standardise and reduce versions when constructing their cranes. Thanks to the three and four-stage versions, MAXXDRIVE XD covers a very wide speed range with a maximum nominal gear ratio of i=355. The constant torque across the whole speed ratio guarantees a high efficiency while in use. “We are delighted that we are now able to also offer complete drive solutions in an economic and tailor-made manner with our proven NORD quality standards”, said Niermann.
Serial components for quick delivery
For the MAXXDRIVE XD’s components, NORD is using tried and tested standard parts from our proven range of industrial gear units. This offers customers a wide choice of options and guarantees a short delivery time. Additionally, housing is also available with an inspection cover, enabling a visual check of internal components without having to remove the gear unit. It is available in grey cast iron (GJL) or nodular cast iron (GJS).
Industrial gear units for a wide range of applications
MAXXDRIVE XD is suitable for use in lifting equipment in all kinds of cranes: From port and container
cranes to overhead and gantry cranes but also for container and high bay coil storage. This makes it relevant for a wide range of industries, not just for ports, logistics and shipyards but also for the metal, chemical and paper industries as well as mining and bulk goods transhipment.
NORD is presenting the new MAXXDRIVE XD industrial gear units at bauma in Munich from 24th to 30th October 2022 in Hall/Stand A3.537.
