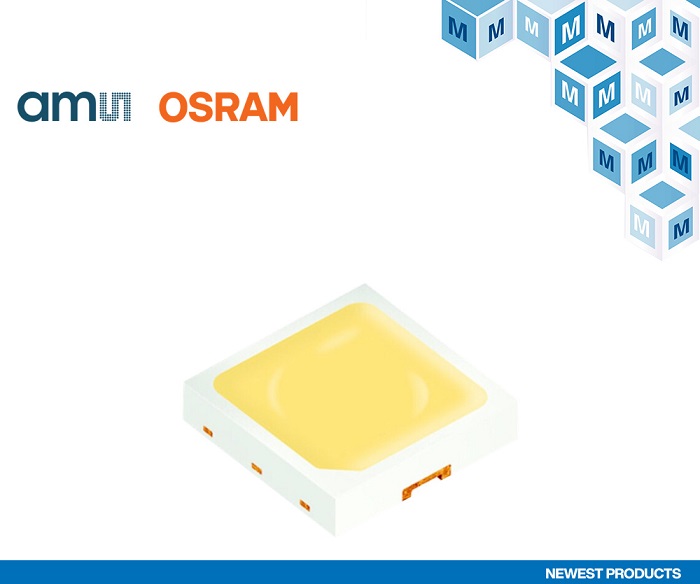

Mouser Electronics, Inc. is now stocking the SYNIOS P3030 KW DSLP31.CE LED from ams OSRAM. Part of ams OSRAM’s SYNIOS P Family of products is the P3030 KW DSLP31.CE delivers an exceptional solution that meets the energy efficiency, weight, and space-saving qualities for the rapidly emerging field of automotive exterior lighting.
The ams OSRAM SYNIOS P3030 KW DSLP31.CE, available from Mouser Electronics, is a white LED with a luminous flux/radiant flux of 45 lm to 71 lm and a minimum color rendering index (CRI) of 90. Forward current is rated at 3 mA to 200 mA, with a pulsed forward current of 400 mA (max.). The LED functions on a forward voltage of 2.6 V to 3.5 V, with a maximum reverse voltage of 5V.
Incorporating InGaN-on-sapphire chip technology, the KW DSLP31.CE is designed using a colored-diffused silicone resin with a very flat square package. The close-to-center chip layout allows for optimal design flexibility, and its small outline dimensions, especially the height, provide maximum flexibility to accommodate even the tightest of spaces.
The compact 3 mm × 3 mm × 0.65 mm SMT LED operates at -40°C to +125°C and is ESD tested at 2 kV according to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2). The LED is AEC-Q102 qualified and enables designers to incorporate design, comfort or safety functions using car-body illumination for a variety of automotive-based lighting applications.
