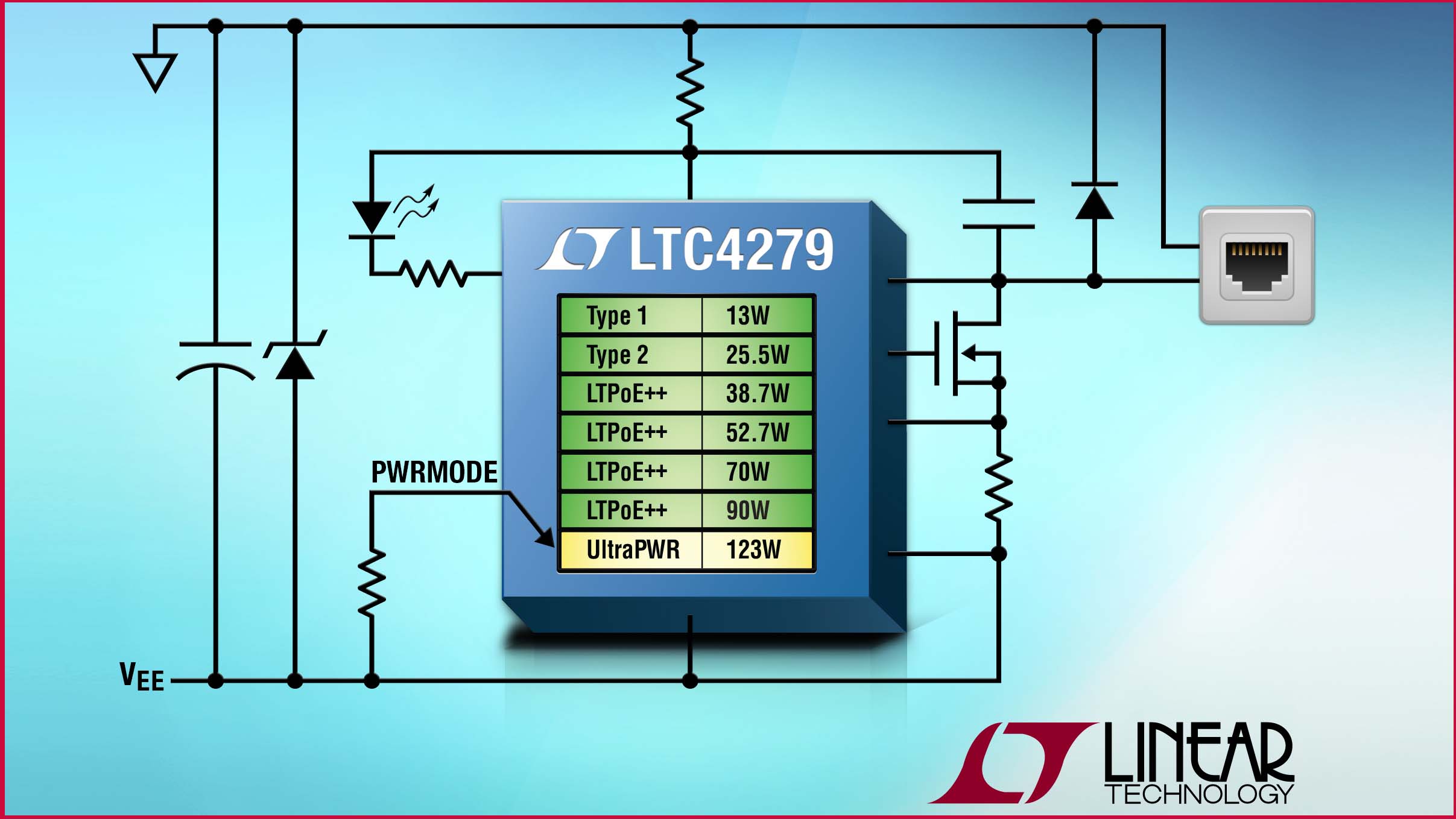

Linear Technology Corporation introduces the LTC4279 single port Power over Ethernet (PoE) controller for power sourcing equipment (PSE), delivering up to 123W of power over CAT-5e cable for power-hungry applications. Demand for higher power delivery comes from a widespread set of applications, including LTE picocell base stations, LED signage, security monitoring systems, home automation and machine vision systems. The highly versatile LTC4279 delivers power to a wide variety of powered devices (PDs).
This includes all legacy (<13W), IEEE 802.3at Type 1 (13W) and Type 2 (25.5W) PDs, Linear’s proprietary LTPoE++ (up to 90W), and custom (<123W) PDs. 2-pair and 4-pair output topologies are supported, as well as single-signature and dual-signature architectures. Resistor-adjustable power selection allows the LTC4279 to be easily configured for multiple sockets, simplifying design and bill of materials.
The LTC4279 provides fully autonomous operation for a wide variety of PSE applications, including endpoints and midspan power injectors. A low power sense resistor and external MOSFET simplify thermal design; traditional PSEs utilize less robust MOSFETs with higher RDS(ON). PD discovery is accomplished using a high reliability 4-point detection mechanism that ensures best-in-class immunity from false PD detection. The LTC4279 provides a comprehensive set of PD classification mechanisms to enable wide system compatibility. Robustness is reinforced with classification-dependent current cutoff and limit thresholds, short-circuit protection and ±80V cable surge protection.
The LTC4279 is offered in the industrial temperature grade (–40°C to 85°C) and is available in RoHS-compliant 4mm x 5mm QFN-20 and SO-16 packages. The LTC4279 is priced starting at $3.45 each in 1,000-piece quantities and is now available in production quantities. The LTC4279, combined with the LT4275 and LT4276 PD controllers, enable up to 123W end-to-end design. Please visit www.linear.com/product/LTC4279 for more product information.
Summary of Features: LTC4279
- Compliant with IEEE 802.3at Type 1 & 2
- Supports LTPoE++ Up to 90W
- UltraPWR Mode Supports Custom PDs up to 123W
- Supports Single-Signature & Dual-Signature PDs
- Very Low Power Dissipation
◦ 0.1Ω Sense Resistance
◦ Low RDS(ON) External MOSFET - Very High-Reliability 4-Point PD Detection
- Pin-Selectable Detection Backoff Timer for Midspans
- Pin-Programmable Power Selection
- Status LED Pin
- Available in 20-Pin QFN & 16-Pin SO Packages
