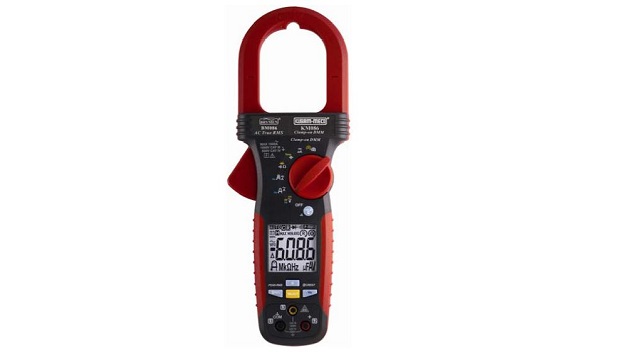

Model KM-086 is a new AC True RMS Clamp Meter introduced by KUSAM-MECO, an ISO 9001-2008 certified company. It has Three Phase Rotation indications, backlight function, MAX/MIN/AVG Recording mode (Auto-ranging).
It has a unique AmpTip function, not available in any other instrument in the market. This feature allows users to keep the current carrying conductor at the top end of the clampmeter& get accurate measurements whereas in other meters, the current carrying conductor has to be at the centre of the clamp to get the best accuracy.
KM 086 also has VFD-V & Hz function specially designed for variable frequency drives. It can measure TRMS 1000A AC Current upto400Hz frequency, TRMS AC voltage 1000V upto400Hz frequency, DC1000Volts, Capacitance upto2500 µF, Frequency, Continuity, Temperature upto400ºC / 752ºF.
It can measure DCµA current &has a special feature of Non-contact EF detection. It has Crest peak-RMS hold & data hold facility. It has highest safety levels having transient protection upto8 KV lighting surge and meets the requirements for CAT III 1000V & CAT IV 600V AC & DC.
It meetsE.M.C. requirements and Double insulation per UL/IEC/EN61010-1 Ed. 3.0, IEC/EN61010-2-033 Ed. 1.0, CAN/CSA C22.2 No.61010-1Ed.3.0,IEC/EN61010-2-032 Ed. 3.0 &IEC/EN61010-031 Ed. 1.1. It has a fire retarded casing. The conductor size isupto51mm dia.It is supplies with Soft Carrying Pouch, Operating Manual, Test lead set, Bkp60 banana plug K-type thermocouple, Alligator Clip set, BKB32 banana plug to type-K socket plug adaptor (for optional purchase).
