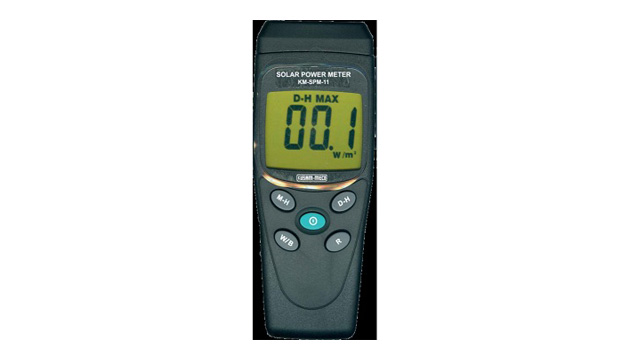

KUSAM-MECO has introduced new professional grade Solar Power Meter Model, KM-SPM-1, which can measure the solar light intensity & solar radiation. It is a much needed product for checking the correct angle for installing the Solar Panels so as to get the maximum power generated from the solar panel. The KM-SPM-11 has a 3½ digits 2000 counts LCD display. The sampling time is approximately 0.25 second. The angular accuracy is cosine corrected to < 5 % for angles < 60°.
The model has End mount light sensor for easy measurement & sensing. It also has an extended measurement range of 2000 W/m² 634/ BTU / ( ft² *h ) with very high accuracy within ± 10 W/m² or ± 5 % , whichever is greater in sunlight. It has high Resolution of 0.1 W/m², 1 BTU / (ft² *h).
The main application of the model is used in solar radiation measurement, which measures the effectiveness of solar film, solar power research physics and optical, laboratories, identification of high performance windows, car windows, light intensity measurement, measurement of the sun’s transmission through transparent & film glass, and for energy saving.
The model has data hold / max / min function. Users can select either the power or the transmission function depending on the requirement. The instrument is very handy and light in weight containing approximately 150 g.
