Unveiling a new system on module to address dual Ethernet connectivity

Variscite announced the launch of the VAR-SOM-6UL System on Module. The VAR-SOM-6UL powered by NXP’s i.MX 6UltraLite / 6ULL / 6ULZ ARM Cortex-A7 processor with up to 900MHz CPU Clock. The new SoM is based on Variscite’s popular DART-6UL platform while integrating additional LVDS bridge option, all packed in SO-DIMM200 form factor to fit the VAR-SOM Pin2Pin family. The expansion of the Pin2Pin family provides full scalability to Variscite’s customers.

The VAR-SOM-6UL is a highly integrated SoM, optimized for power, size, and cost. The design is based on the popular DART-6UL platforms and supports all the features and connectivity options, including dual Ethernet, dual USB, audio, CAN Bus, camera in, Bluetooth/BLE, Touch, ADC, PWM, as well as support for industrial temperature grades -40 to 85°C. In addition, the VAR-SOM-6UL has been enhanced with LVDS bridge via SoM and on SoM two certified Wi-Fi configuration – single-band 802.11b/g/n or dual-band Wi-Fi 802.11ac/a/b/g/n.

The new platform has been customized to fit the ‘VAR-SOM Pin2Pin family, providing a scalable pin-compatible option to i.MX 6 and up to i.MX 8 platforms. The Pin2Pin family offers Variscite’s customers a high level of scalability, extended lifetime availability, and reduced development time, cost, and risk. Popular example: Customers can easily scale up their end-product to a higher performance SoM, such as the VAR-SOM-MX8X, to improve the graphics performance, or to scale down from other pin-compatible platforms to the VAR-SOM-6UL, to optimize the end products’ cost-performance.

Variscite Pin2Pin product families

Two highly scalable product families based on NXP processors.

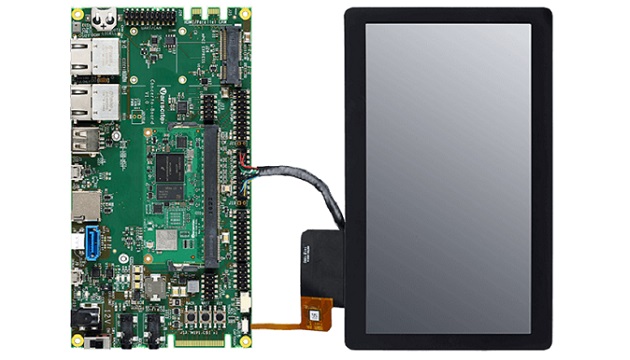

pic main

VAR-SOM-6UL key features:

  • NXP i.MX 6UltraLite / 6ULL / 6ULZ ARM Cortex-A7 with optional security features
  • Up to 900MHz CPU Clock
  • Up to 1024 MB DDR3L and 512 MB NAND / 64 GB eMMC
  • Certified Wi-Fi single-band 802.11b/g/n or dual-band Wi-Fi 802.11ac/a/b/g/n
  • 2 Bluetooth / BLE
  • Dual 10/100Mbps Ethernet
  • 2D Pixel acceleration engine
  • Display: 24-bit parallel RGB / 18-bit LVDS up to WXGA
  • Touchscreen controller
  • Dual USB 2.0 OTG (Host/Device)
  • Audio In/Out
  • Dual CAN, UART, I2C, SPI, PWM, ADC
  • Parallel camera input
  • Industrial temperature grade
  • Size: 67.6 mm x 33 mm
  • OS: Linux Yocto, Linux Debian

For more information, visit: www.variscite.com
