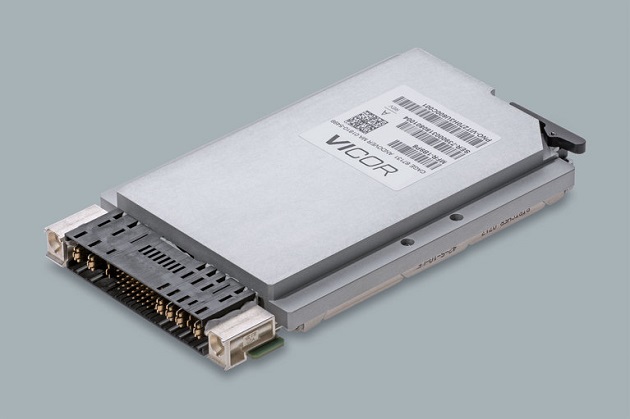

Developed using Vicor high-density and high-efficiency ChiP power modules, the new VITA 62 compliant power supply is designed for 6U OpenVPX conduction-cooled chassis systems. The product operates from a nominal 28V input with predefined output voltages ranging from 3.3V to 12V and delivering up to 1000W of power. Customers requiring different output voltages or power levels can request a customized power supply to meet their own specifications.
The new 6U supply fully meets MIL-461F, MIL-704F, and MIL-1275E standards. See data sheet for compliance information.
| Part # | Nominal Input Voltage | Package Size |
Input Voltage Range | +12V | +5V | +3.3V | +3.3V | +12V | –12V |
| VIT270w3U600yzzz | 270V | 3U (6.6 x 3.9 x 0.9in) | 220 – 320V | 480W | 150W | 66W | 19.8W | 12W | 12W |
| VIT028x3U600y000 | 28V | 3U (6.6 x 3.9 x 0.9in) | 18 – 45V | 480W | 150W | 66W | 19.8W | 12W | 12W |
| VIT028x6U1000y000 | 28V | 6U (6.6 x 9.2 x 0.9in) | 18 – 42V | 840W | 160W | N/A | 99W | 12W | 12W |
For more information, visit www.vicorpower.com
