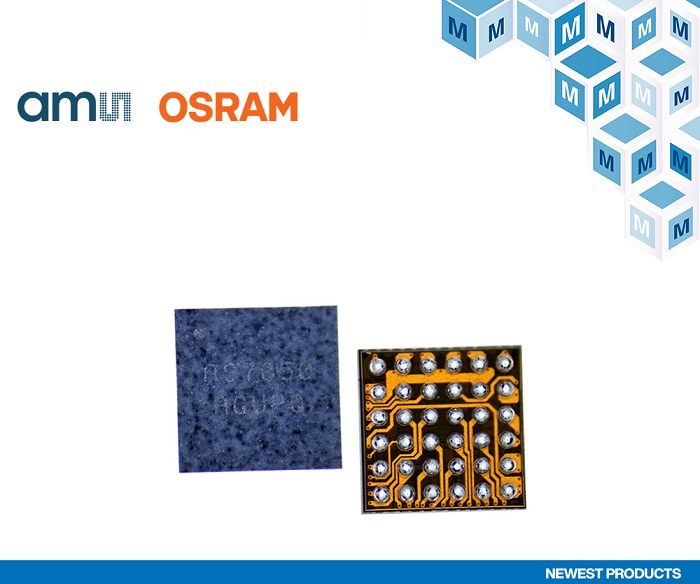

Mouser Electronics, Inc., is now shipping the AS7050 medical and health sensor from ams OSRAM. The AS7050 provides design engineers with next-generation biosignal conversion for a variety of applications, including smart devices; heart rate, electrocardiogram (ECG) and photoplethysmography (PPG) monitoring; optical sensor platforms; wearables and more.
The ams OSRAM AS7050, available from Mouser Electronics, is a biosignal sensor analog front end that offers up to eight LED driver outputs, samples up to six photodiode inputs, and includes support for external electrodes, enabling the highest flexibility for multiple LED and photodiode arrangements in different applications. The analog front end provides two analog-to-digital converters (ADC) channels for simultaneous PPG and ECG measurements and an automatic photodiode offset control. The AS7050 sensor operates from a supply voltage range of 1.7 V to 1.98 V and features a 1 MHz fast-mode plus, 400 MHz fast mode, and 100 MHz standard mode through an I²C bus for maximum efficiency.
Mouser also stocks the ams OSRAM Evaluation Kit for the AS7050, which includes a main board and breakout board for full flexibility. The breakout board incorporates a biosensor, temperature sensor, accelerometer, and electrodes that can be reconnected to the main board via a flexible printed circuit (FPC) cable or external electrodes. The breakout board can also be connected to a wristband via a Molex PicoBlade connector.
To learn more about the ams OSRAM AS7050 sensor, visit www.mouser.com
