Overview

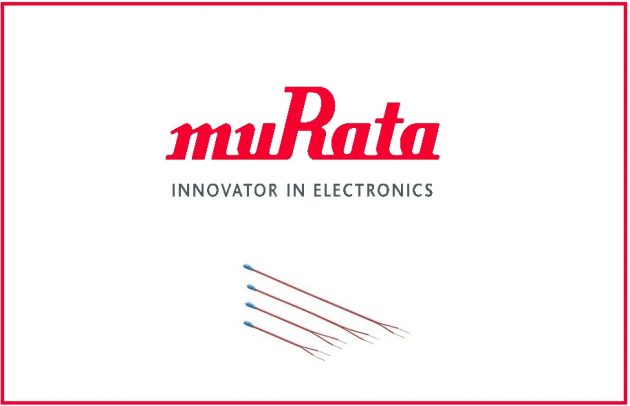

Murata has improved its NXF series of thermal string type NTC thermistors with flexible leads, and commercialized it as a new type (NXF*15******E*****).
This product is intended for use in applications such as automotive onboard equipment and consumer equipment. Production is scheduled to commence in September 2017.
Background
The NXF series of thermal string type NTC thermistors with flexible leads is a series of electronic components for detecting and measuring temperature. These sensors feature one of the industry’s smallest sensor heads, realizing compact size and fast thermal response.
The new type (NXF*15******E*****) thermistor has 25% faster thermal response (compared to the hot constant of the previous model), which has been realized by selecting an appropriate wire material and internal construction. It is thus optimum for detecting the temperature at a point separate from the PC board, and also as a temperature sensor for assemblies.
Electrical characteristics
| Part Number | Resistance (25℃) |
B-Constant (25/50℃) |
Operating Current for Sensor (25℃) |
Thermal Dissipation Constant (25℃) |
Thermal Time Constant (25℃) |
Limited Applications |
| NXFT15XV302FEAB*** | 3kΩ | 3936K | 0.141mA | 0.6mW/℃ | 3s | Consumer |
| NXFT15XH103FEAB*** | 10kΩ | 3380K | 0.077mA | 0.6mW/℃ | 3s | Consumer |
| NXFT15XV103FEAB*** | 10kΩ | 3936K | 0.077mA | 0.6mW/℃ | 3s | Consumer |
| NXFT15WF104FEAB*** | 100kΩ | 4250K | 0.024mA | 0.6mW/℃ | 3s | Consumer |
| NXFS15XV302FEAB*** | 3kΩ | 3936K | 0.141mA | 0.6mW/℃ | 3s | Automotive |
| NXFS15XH103FEAB*** | 10kΩ | 3380K | 0.077mA | 0.6mW/℃ | 3s | Automotive |
| NXFS15XV103FEAB*** | 10kΩ | 3936K | 0.077mA | 0.6mW/℃ | 3s | Automotive |
| NXFS15WF104FEAB*** | 100kΩ | 4250K | 0.024mA | 0.6mW/℃ | 3s | Automotive |
Operating Temperature Range：-40ﾟC to +125ﾟ
Thermal response characteristics
External size
Width (sensor head) : 1.2 ± 0.4 mm
Length : 25, 30, 40, 50 mm (4 types)
Site URL for the product Series
NXF Series
For more information, visit www.murata.co
