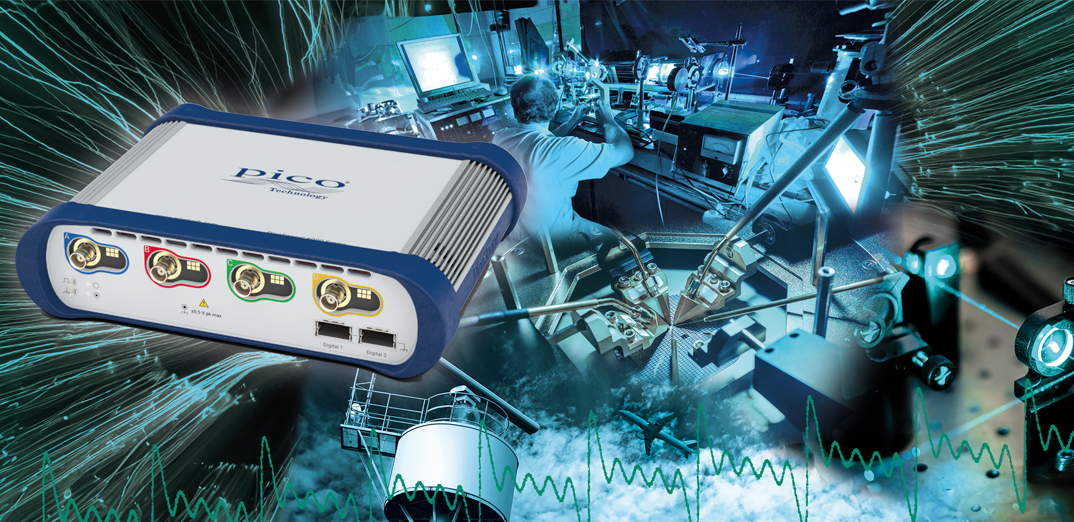

In a groundbreaking announcement, Saelig Company introduced the PicoScope 6428E-D, a cutting-edge four-channel high-speed oscilloscope. This innovative addition to Pico Technology’s renowned PicoScope 6000E Series boasts an impressive bandwidth of up to 3GHz and a remarkable maximum vertical resolution of 12 bits into 50ohm inputs. Featuring an unprecedented real-time sampling rate of 10GSa/s, the PicoScope 6428E-D sets a new standard for precision and performance in waveform analysis.
One of its standout features is its ability to accommodate larger than ±500mV input signals with external attenuators or probes specifically designed for 50ohm inputs. The device’s 4GSa buffer can hold up to two 200ms captures at the maximum sampling rate, facilitating the recording of multiple instances of complex signals under varying conditions. This capability is instrumental in quickly capturing high-frequency signals with unparalleled precision for detailed signal analysis. Moreover, the PicoScope 6428E-D can display single-shot pulses with an impressive 100ps time resolution, enabling users to uncover critical signal integrity issues such as timing errors, glitches, dropouts, crosstalk, and metastability issues.
Key Features:
- 4 channels with four input ranges per channel (±50mV, ±100mV, ±200mV, ±500mV)
- Up to 3GHz bandwidth
- 100ps time resolution
- 4GSa capture memory
- Up to 10 GSa/s real-time sampling
- 8-, 10-, or 12-bit flexible resolution (FlexRes)
- Segmented memory/rapid block trigger
- Built-in 50MHz 14-bit function generator/AWG
- Fast transfer of captured data via USB 3.0 SuperSpeed connection
- PicoScope software included, with drivers and SDK (Windows, Linux, Mac)
- Programming examples for LabView, MATLAB, Python, and C++
Applications:
- High-energy physics
- Particle accelerators
- LIDAR (light detection and ranging)
- VISAR (velocity-interferometer system for any reflector)
- Spectroscopy
- Medical imaging
- Semiconductor/Production test
- Non-destructive testing
Designed for scientists, engineers, and researchers involved in high-speed applications, the PicoScope 6428E-D caters to the need for capturing, measuring, and analyzing sub-nanosecond waveform events. Whether used as a standalone instrument or integrated into a larger system, this oscilloscope offers unparalleled performance at a competitive cost. Unlike traditional benchtop mixed-signal oscilloscopes, which occupy significant bench space and are often financially out of reach for many engineers, the 6428E-D provides a cost-effective solution without compromising on quality. Additionally, users benefit from free software upgrades as new features become available.
Manufactured by Pico Technology, Europe’s award-winning test and measurement manufacturer, the PicoScope 6428E-D is now available through Saelig Company, Inc., their USA technical distributor.
