The DSA504RT delivers high-performance timing and integration at a cost-efficient price point
Spacecraft timing systems must provide highly stable, precise signals for navigation, communications, and scientific instruments, even when GNSS signals are weak or unavailable. Designers often rely on multiple oscillators and buffers to supply precise frequencies to various subsystems, adding size, mass, and complexity. Microchip Technology announces the space-grade DSA504RT, a radiation-tolerant, six-output programmable clock generator for addressing the complex timing needs of aerospace and defense applications.
The DSA504RT streamlines timing architecture by generating multiple clean, phase-aligned frequencies from a single master source. Additionally, this solution reduces the need for multiple discrete oscillators, lowers overall component count, and improves system failure in time (FIT) rate. It also reduces power consumption and mass, as well as simplifies distribution networks to keep all subsystems synchronized even in the harshest environments and during GNSS outages or disruptions.
Analog Phase-Locked Loop (APLL) features spread spectrum capability, two fractional and two integer dividers, and six highly configurable output buffers, each of which can be configured as a differential driver (LVPECL, LVDS, or HCSL) or as a pair of single-ended CMOS outputs. The DSA504RT delivers ultra-low jitter performance as low as 200 femtoseconds (12kHz–20MHz) and is compliant with PCIe Gen 1-7 standards. This level of integration allows engineers to replace multiple crystals, oscillators, and buffers with a single device, improving design reliability, reducing Bill of Materials cost, and design complexity.
“This Microchip clock generation device is a game-changer for space applications. It can offer a comprehensive clock tree solution, producing three different clock families and up to six different frequencies, each buffered on a variety of selectable output drive types,” said Maamoun Abou Seido, appointed vice president of Microchip’s timing communications group. “Replacing numerous oscillators, buffers, and synthesizers, the DSA504RT saves board space and reduces part count to improve the system’s Failures in Time (FIT) rate in these high-reliability applications.”

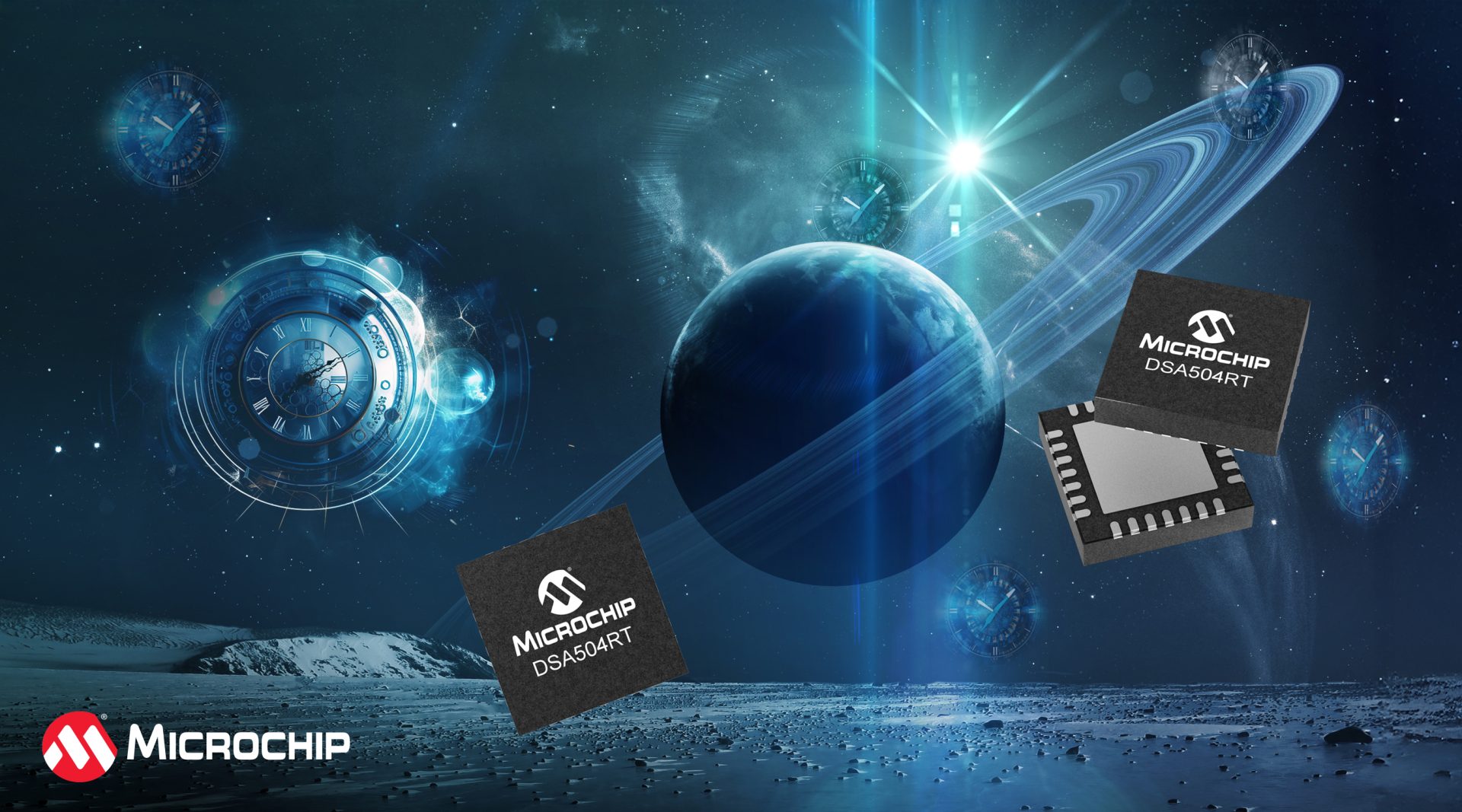

The DSA504RT, offered in QFN28 and CQFP32 packages, serves as a companion device for complex aerospace and defense systems. It enables high integration of clock architectures within a single chip, distributing precise timing references to subsystems built around radiation-tolerant or radiation-hardened FPGAs and MCUs.
