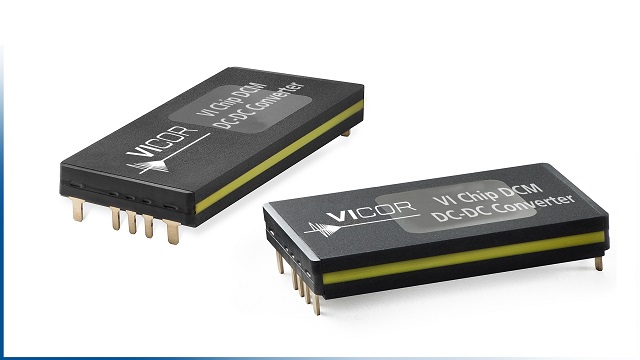

Vicor has extended its family of isolated, regulated DC-DC converter modules (DCMs) in ChiP packages, with a range of ±1% voltage regulation devices. With unrivaled power densities of up to 1,032 W/in3, the new series will offer engineers the option of directly driving loads that require tightly regulated output voltages. Vicor’s current family of DCMs in a ChiP package offers up to ±3% regulation and can also be paralleled into arrays for higher power delivery.
The ChiP DCM can operate from a wide range unregulated input to generate an isolated DC output. With its high frequency zero-voltage switching (ZVS) topology, the DCM converter consistently delivers high efficiency across its entire input voltage range.
Supporting Point-of-Load Applications
The new series of DCMs are initially offered with 28V, 270V, and 275V nominal input voltages. These products are aimed at a variety of defense and industrial applications that require tighter output voltage regulation – these include, UAV, ground vehicle, radar, transportation and industrial controls. All these families are available in M-Grade, which provides operation down to -55°C.
New ChiP DCMs with enhanced output voltage regulation:
| New ChiP DCM Family of Parts | |||||||||
| Nominal Input Voltage |
Package | Input Voltage Range |
Output Voltage | ||||||
| 3.3V | 5V | 12V | 15V | 24V | 28V | 48V | |||
| 28V | 3623 ChiP
(1.52 x 0.90 x 0.29 in) |
16 – 50V | 120W | 180W | 320W | 320W | 320W | 320W | |
| 270V | 4623 ChiP
(1.89 x 0.90 x 0.29 in) |
160 – 420V | 250W | 500W | 500W | 500W | |||
| 275V | 4623 ChiP
(1.89 x 0.90 x 0.29 in) |
120 – 420V | 190W | 375W | 375W | 375W | 375W | ||
Items in green are available in standard and enhanced VOUT regulation
For more information visit: Vicor’s new ±1% VOUT regulation DCMs
