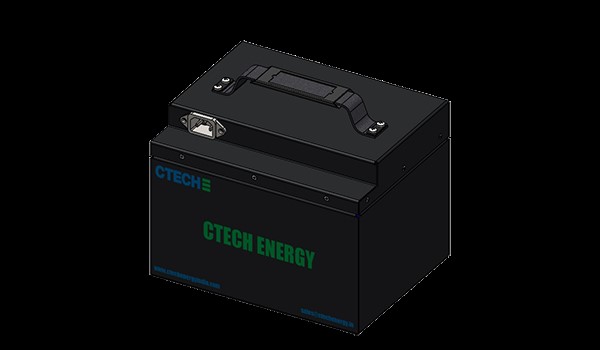

Lithium-ion Batteries for Electric 2W/ Scooters /Scooty

Ctech Energy offers a wide range Lithium-Ion batteries under operating Range of 48V, 60V, 72V for Low Speed and high-speed Electric Scooters of 2W.

Key Features

1. High mileage with full load
2. Light weight & Hi-tech Safety Features
3. Modular stylish designs
4. High performance EV grade power cell
5. Multi-level protection at Current/Voltage/temperature level
6. Long life cycle performance
7. Equipped with smart BMS to ensure higher reliability
8. Fast Charge/Discharge Rate
9. Designed in metallic casing IP65
10. AIS 048 Certified battery

Advanced Features

• External switch to control the BMS Operation
• Peak Power tolerance of 3 KW up to 10 sec
• Operating Temperature range of -20 to 60 degree
• Voltage Protection at Cell level
• Current Protections at pack Level
• Short circuit protection
• Over discharging current Protection
• Passive Cell Balancing
• Over charging – Discharging Protection at voltage level

Key Specifications

• Battery Rated 48 V 1.2 KW/1.4 KWH
• High mileage with full load
• High Energy density NMC cells
• Operating voltage range (40 V to 55 V)
• Cycle life of +1000 under ambient operating conditions
• High Charge-Discharge current up to 1C
• High Energy Density

IoT Features

• GPS tracking device can be additional mounted to track the battery
• Immobilization of the battery can be done remotely with GPS
• Geo-fencing can be achieved
• KM driven can be recorded in excel reports
• Battery Voltage and SOC can be monitored through GPS

Charger Specifications

• CTECH ENERGY PRIVATE LIMITED provides 48V/5A Smart portable Chargers especially made for Lithium-Ion batteries.
• It has AC input voltage range of 160 V -280 V and the Charger is Generator Compatible and it does pure DC Voltage Charging.
• The charger has Over Load and short circuit protections & comes with Fan Cooling and Thermal current controlled, Anti rust aluminium cooling features.
• The advanced high frequency SMPS design chargers saves at least 20% on electricity cost over conventional chargers.

For more information, visit www.ctechenergyindia.com
