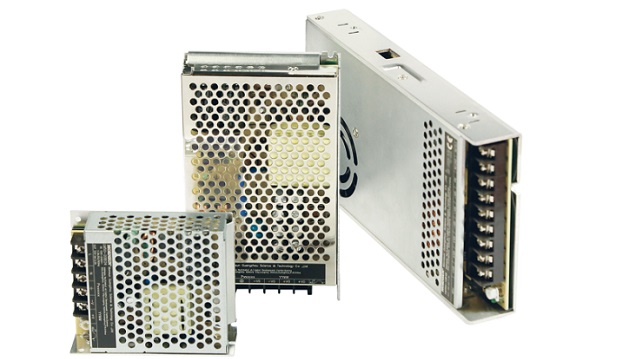

MORNSUN launched a new line of enclosed switching power supplies – LM series, which offers power of 35W, 50W, 75W, 100W, 150W, 200W and 350W. It is ideal for a wide range of applications including industrial control, industrial automation machinery, intelligent security, smart grid, IoT, mechanical and electrical equipment, electronic instruments, intelligent building, and household appliances.
LM single output series carries output voltages of 5V, 12V, 15V, 24V, 36V and 48V, and LM multi-output series carries output voltages of 5V, ±12V, ±15V, 24V, 36V and 48V. Protections include short circuit, over current, over voltage. All models are complies with IEC62368, UL62368, EN62368 and GB4943 standards.
Product advantages:
- Multiple outputs
Single output: LM35/50/75/100/150/200/350-xxBxx (B for single output)
Dual output: LM35/50/75/100-10Dxx（D for dual output）
Triple output: LM35/50/75/100-10Cxx（C for triple output）
- Reliable performance
- Suitable for high altitude environment
Its operating altitude is high up to 5000 meters.
- Wide operating temperature range
Its operating temperature range is from -30℃ to +70℃.
- Ideal for applications that required peak power
The critical over current value can last 1 hour( e.g, the application of wireless transmission of instantaneous power).
- Complete EMC tests and protections
Meets CISPR32/EN55032 CLASS B standards. Protections includes short circuit, over current, over voltage.
- Convenient services
Quick response with local service, FAE technical support, complete failure analysis platform, 3 years warranty.
LM single output series:
1) Universal input（85-264VAC/100-373VDC）
35-150W LMxx-20Bxx series
200W/350W LMxx10Bxx series
2) Special input（165-264VAC/200-373VDC）
35-150W LMxx-22Bxx series
200W/350W LMxx-12Bxx series
LM Multiple outputs series:
1) Universal input（85-264VAC/100-373VDC）
35-100W LMxx-10Dxx/LMxx-10Cxx series
Features:
- Regulated output, low ripple & noise
- Cooling by free air convection(LM350-xxBxx series: built-in fan on-off control , forced air cooling by built-in DC fan)
- Complete protections: short circuit, over current, over voltage
- Withstand 300VAC surge input for 5 second(no damage)
- Output critical over-current value can last 1 hour (normal temperature 25 ° C, rated input voltage, no damage on products)
- Withstand 5G vibration test
- Meets 5000m altitude requirements
- Meets CISPR32/EN55032 CLASS B
- Compliance to IEC62368, UL62368, EN62368, GB4943 standards
- 3-proof customization is available
- 3 years warranty
