Power Integrations, the leader in high-voltage integrated circuits for energy-efficient power conversion, announced the release of its BridgeSwitch integrated half-bridge (IHB) motor driver IC family. BridgeSwitch ICs feature high- and low-side advanced FREDFETs (Fast Recovery Diode Field Effect Transistors) with integrated lossless current sensing, resulting in inverter conversion efficiency of up to 98.5% in brushless DC (BLDC) motor drive applications to 300 W.
Superior efficiency along with the distributed thermal footprint provided by the IHB driver eliminates the need for a heatsink, reducing both system cost and weight. Integrated lossless current sensing, bus voltage sensing and system-level thermal sensing makes this device family ideal for BLDC motors in home-appliance applications. BridgeSwitch devices target refrigerator compressors, HVAC system fans and other residential and light commercial pumps, fans and blowers.
Each BridgeSwitch device may be configured with different high- and low-side current limits, eliminating the need for the microcontroller and external circuitry to protect the system from open or shorted motor windings. Integrated loss-less current monitoring provides hardware-based motor fault protection, which simplifies the task of providing protection under motor-fault conditions to satisfy IEC60335-1 and IEC60730-1 requirements.
Comments senior product marketing manager Cristian Ionescu-Catrina: “We have taken a fresh look at the challenges posed by the burgeoning BLDC market and ever-tightening energy-use regulations worldwide, and produced an innovative solution that saves energy and space while reducing the BOM. This eases compliance with safety standards, simplifies circuitry and reduces development time.”
Other features include up to 20 kHz PWM frequency, and a small signal output that provides accurate, real-time reporting of FREDFET drain current which mirrors the positive motor winding current. Safety features include two-level device over-temperature detection, low-side and high-side cycle-by-cycle current limit, as well as DC bus overvoltage and undervoltage protection and reporting.

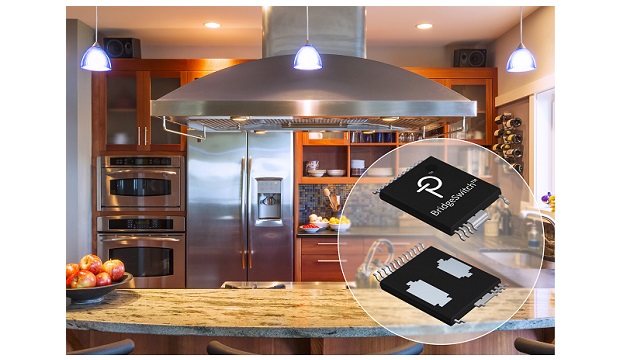

Devices are compatible with all common control algorithms, field oriented control (FOC), sinusoidal, and trapezoidal modes with sensor and sensorless detection, which are described in reference designs DER-654, DER-653 and DER-749. BridgeSwitch is available in InSOP-24C, a small surface-mount package offering creepage distances greater than 3.2 mm and enabling PCB heatsinking via two exposed pads.
