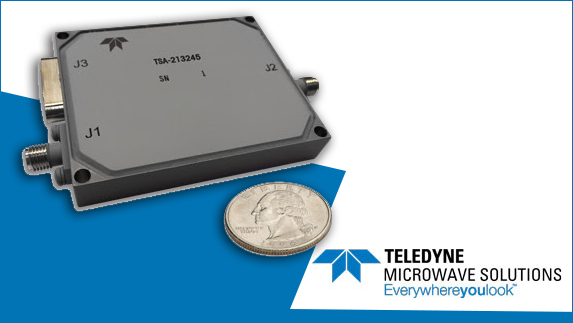

The Teledyne Microwave Solutions (TMS) family of GaN-based amplifiers maximizes power density and efficiency, and establishes a new benchmark for small size in the 0.1 to 6.0 GHz range that operates over multi octave. With dimensions of 2.5″L x 2″W x 0.42″H at only 2.1 cubic inches, these modular, non-ITAR GaN amplifiers maintain the rugged design characteristics needed for harsh airborne and land based requirements.
Depending on frequency band, output power ranges between 15 and 40 watts with minimum overall gain of 50 dB. In addition to normal DC connections via a 15 pin Micro D connector, other convenient control / interface features available via the connector include a TX enable / disable TTL command (100 ns TYP, 200 nx MAX); over temperature automatic shutdown and associated alarm (TTL); and the ability to monitor unit temperature via an analog voltage which is proportional to case temperature. Optimized to cover 5 common frequency bands, this line of GaN amplifiers can be easily adapted to comply with your frequency and power-level requirements due to the modular design technique used by TMS engineer.
- FREQUENCY: 0.1 to 6.0 GHz
- Multi Octave Wide Band-width
- TECHNOLOGY: GaN
- PACKAGING Connectorized
- PLATFORMS: Ground, Airborne
- APPLICATIONS: Demanding Military and Commercial
- CALCULATED MTBF: 40,000 + hours @85°C
