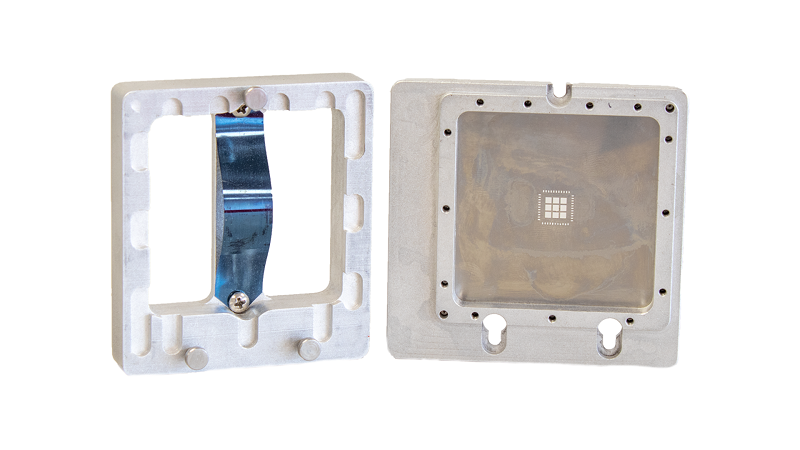

PDR is pleased to introduce its new Integrated Solder Past Print Part System for rework. The tools are designed to work with all PDR Evolution Series Rework Systems.
Treated with high durability Carbon Nanotube Technology for superior paste-to-component release, PDR’s Print Part System offers superior paste printing to component results with minimal effort.
Key to the success of any print part operation is the ability of the print part fixture to supply correct and equal pressure to the component when undergoing the pasting operation. PDR’s exclusive design offers a hands-free/tool-free calibrated pressure nest to ensure constant and direct pressure is achieved, thus providing superior paste application and deposition, virtually eliminating the need for re-prints.
The PDR Print Part System mounts directly to all PDR Evolution Series Rework platforms for direct vertical lift utilizing PDR’s Integrated Vacuum Pick Up Feature/Gram Force placement settings. Designed for integration into your rework process when using PDR Systems, the PDR Print Part System also can be used as a stand-alone device for general printing of solder paste to components.
PDR’s Print Part System is made of high-quality materials and manufactured with new, state-of-the-art laser technology to ensure highly accurate stencil fabrication and ultra-smooth edge/bore finishes.
