    CEA-Leti Advances Silicon-Integrated Quantum Cascade Lasers for Mid-Infrared Photonics

    CEA-Leti presented new research at SPIE Photonics West highlighting major progress in the integration of quantum cascade lasers (QCLs) with silicon photonic platforms for mid-infrared (MIR) applications.

    The paper titled, Advanced Architectures for Hybrid III-V/Silicon Quantum Cascade Lasers: Toward Integrated Mid-Infrared Photonic Platforms,” compares three complementary hybrid laser architectures that collectively advance the practicality, flexibility, and scalability of MIR photonics.

    Toward ‘Smaller, More Robust, and More Manufacturable MIR Systems’

    Mid-infrared light plays a critical role in technologies such as gas sensing, chemical spectroscopy, biomedical diagnostics, and security, because many molecules exhibit strong absorption signatures in this spectral region. Despite the technology’s importance, MIR photonic systems remain large, costly, and difficult to manufacture at scale. Integrating MIR light sources directly onto silicon photonic platforms offers a path toward smaller, more robust, and more manufacturable systems—bringing mid-infrared photonics closer to the level of integration in the near-infrared.

    Three Architectures, Three Integration Strategies

    In its Photonics West presentation, CEA-Leti demonstrated and compared three distinct hybrid III-V/silicon QCL architectures, each addressing a different integration challenge:

    Hybrid Distributed Feedback QCL on Silicon-on-Nothing-on-Insulator with Adiabatic Coupling

    • This approach enables robust single-mode emission around 4.3 µm with efficient optical power transfer from the III-V active region into silicon waveguides. High-index-contrast silicon photonics provides precise feedback and light routing, making this architecture well-suited for scalable photonic integrated circuits targeting spectroscopy and chemical sensing.

    Hybrid QCL with an External Silicon Distributed Bragg Reflector Cavity

    • In this configuration, optical gain and optical feedback are decoupled: the III-V material provides amplification, while wavelength selection and feedback are implemented in silicon using distributed Bragg reflector (DBR) cavities. This separation offers enhanced design flexibility and opens a clear path toward tunable and multifunctional MIR sources for advanced spectroscopic and sensing systems.

    Ultra-Compact QCL Micro-Sources Based on Photonic Crystals & Micro-Rings

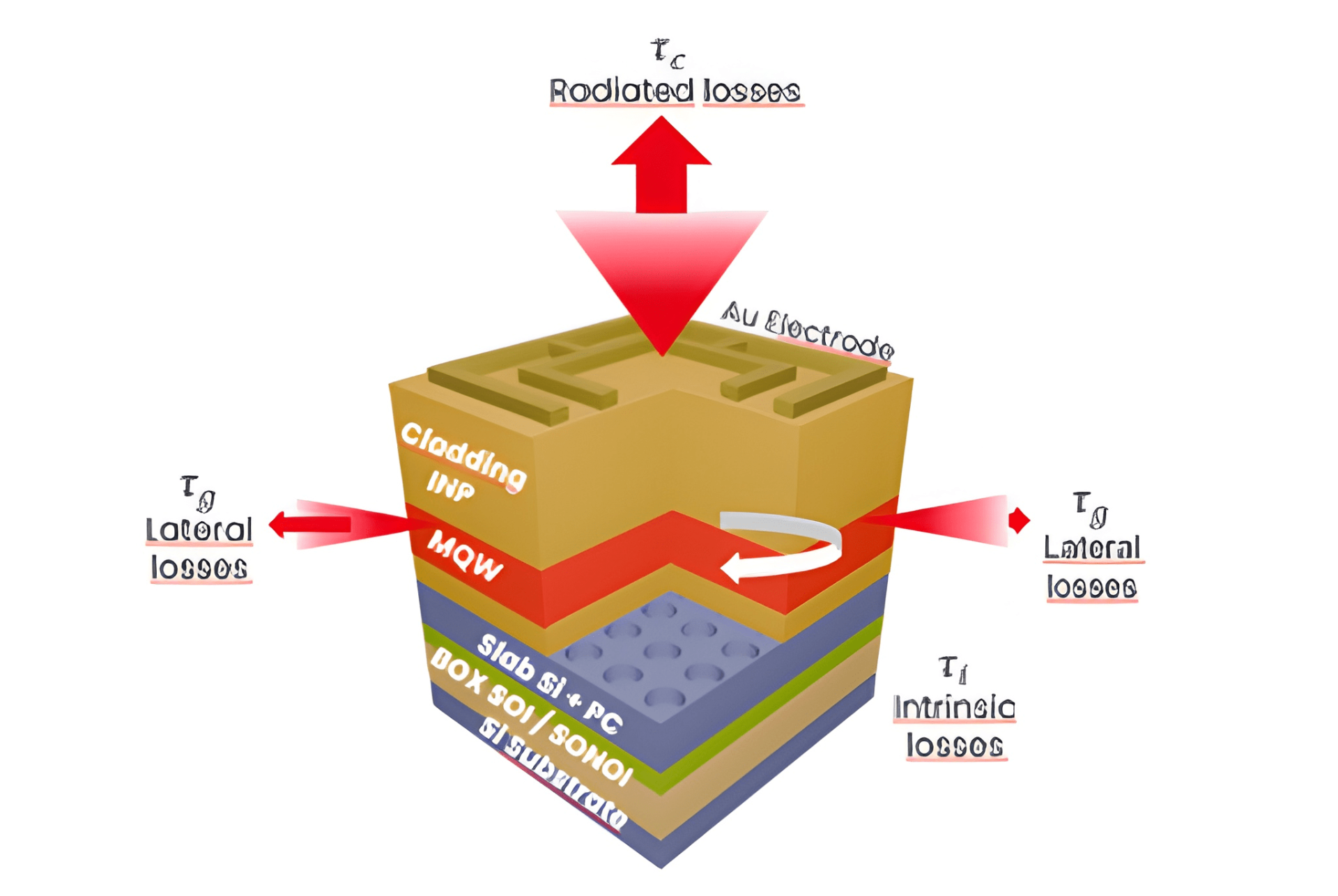

    • Miniature light sources in these devices achieve footprints below 100 µm² by leveraging strong optical confinement and resonant effects. The resulting extreme miniaturization enables dense on-chip integration and supports new system architectures where size, power consumption, and integration density are critical.

    From Passive Platform to Active Host

    Collectively, the results show that silicon photonics can play an active role in mid-infrared laser systems. By combining adiabatic optical coupling, silicon-based feedback and cavity engineering, and ultra-compact laser concepts, CEA-Leti establishes several viable integration pathways rather than a single, one-size-fits-all solution. The work highlights how different architectures trade off stability, flexibility, and footprint, providing designers with a practical toolkit for MIR photonic systems.

    “By combining quantum cascade lasers with silicon photonics, we are bringing mid-infrared sources closer to the level of integration and scalability that silicon platforms have already achieved in the near-infrared,” said Alexis Hobl, presenter and lead author of the paper.

    Looking Ahead

    Future work will focus on further improving optical coupling efficiency, fabrication robustness, and thermal and electrical management, as well as integrating additional on-chip photonic functions such as filters, multiplexers, and interferometric circuits. Demonstrating wafer-scale reproducibility and packaging-ready designs will be key milestones on the path toward fully integrated mid-infrared photonic systems.

    Acknowledgements: L’Institut des Nanotechnologies de Lyon (INL), III-V Lab, and Fraunhofer Applied Solid State Physics IAF contributed to this project.
